PVC Laminated carbon aramid fabric made from a woven carbon and aramid hybrid base. Available with different PVC Laminated colors, thicknesses and finishes.

Material

Carbon Fiber + Aramid Fiber +Glass fiber

Base Fabric

Carbon Fabric / Carbon Aramid Hybrid Fabric / Carbon Glass Hybrid Fabric ( It also can be other films such as TPU, PVF, and PVDF)

Base Fabric Weight

200 g/m²

Film

PVC

Colors

Black / White / Custom

Surface

Multiple Finishes

Thickness

Customizable

Width

1000 mm

Packaging

Roll+cardboard box / Customized Packaging

GET A QUOTE

PVC Laminated Carbon Aramid Fabric Features

High Strength & Tear Resistance

What Is PVC Laminated Carbon Aramid Fabric?

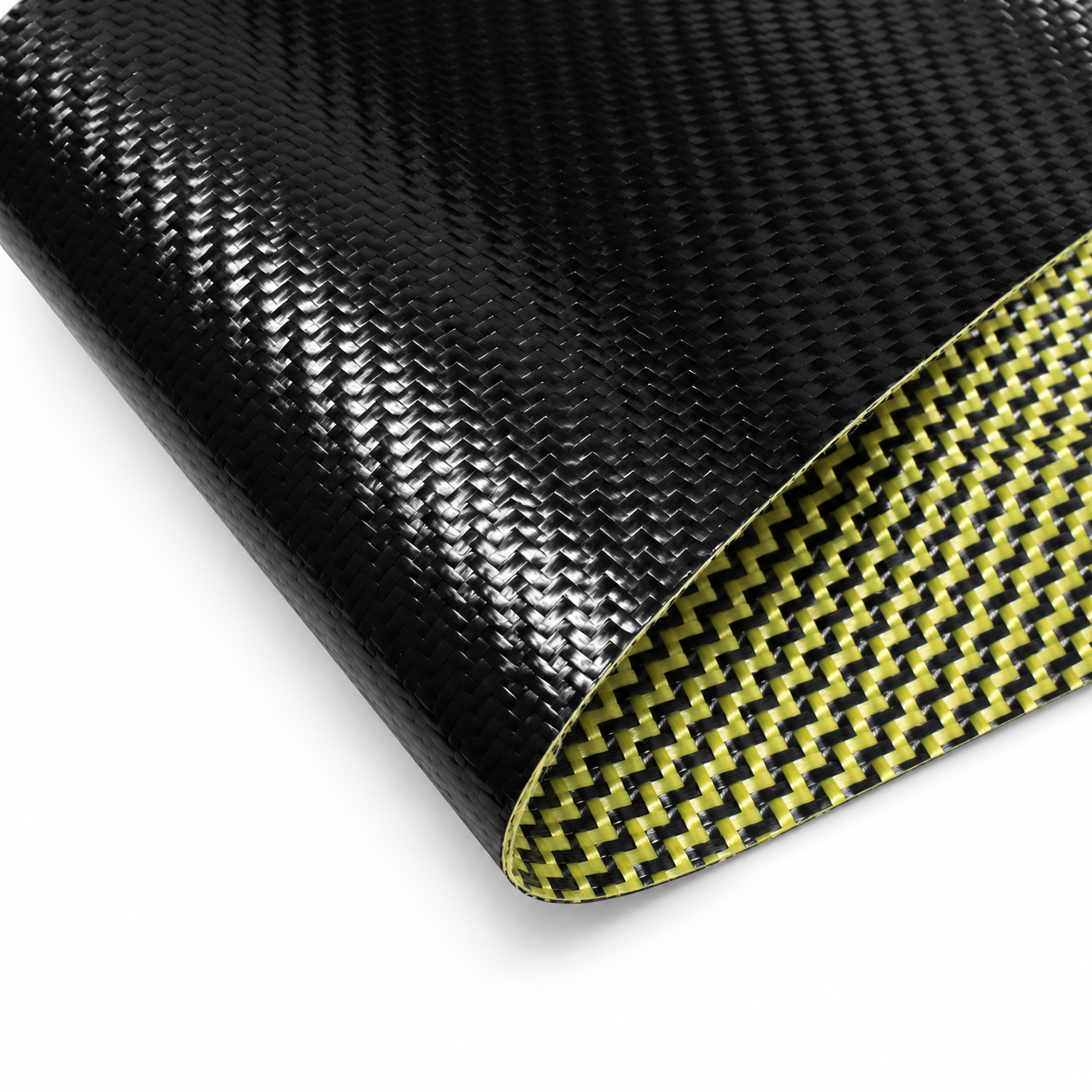

Carbon aramidhybrid fabric laminated PVC filmis a flexible woven material made from carbon fiber and aramid fiber yarns. The two fibers are woven together to form a single hybrid fabric, which is then laminated with PVC film.

Carbon fiber contributes strength and dimensional stability to the woven structure, while aramid fiber adds toughness and resistance to fiber breakage. By combining the two in one weave, the fabric brings together the different characteristics of both materials.

ThePVC film changes the surface of the fabric. Depending on how it is applied, it can cover the weave, give the material a smoother finish, and provide a barrier against moisture and everyday surface contamination.

SHENGHE use the same carbon-aramid hybrid base fabric with different flim options such as TPU ,PVF ,PVDF etc , Thesemake it possible to change the surface appearance and finished thickness without changing the underlying woven construction.

Get a quote

PVC Laminated Carbon Aramid Fabric – Technical Specifications

Items	Carbon Fabric Laminated PVC Film	Carbon Aramid Fabric Laminated PVC Film	Carbon Glass Hybrid Fabric Laminated PVC Film

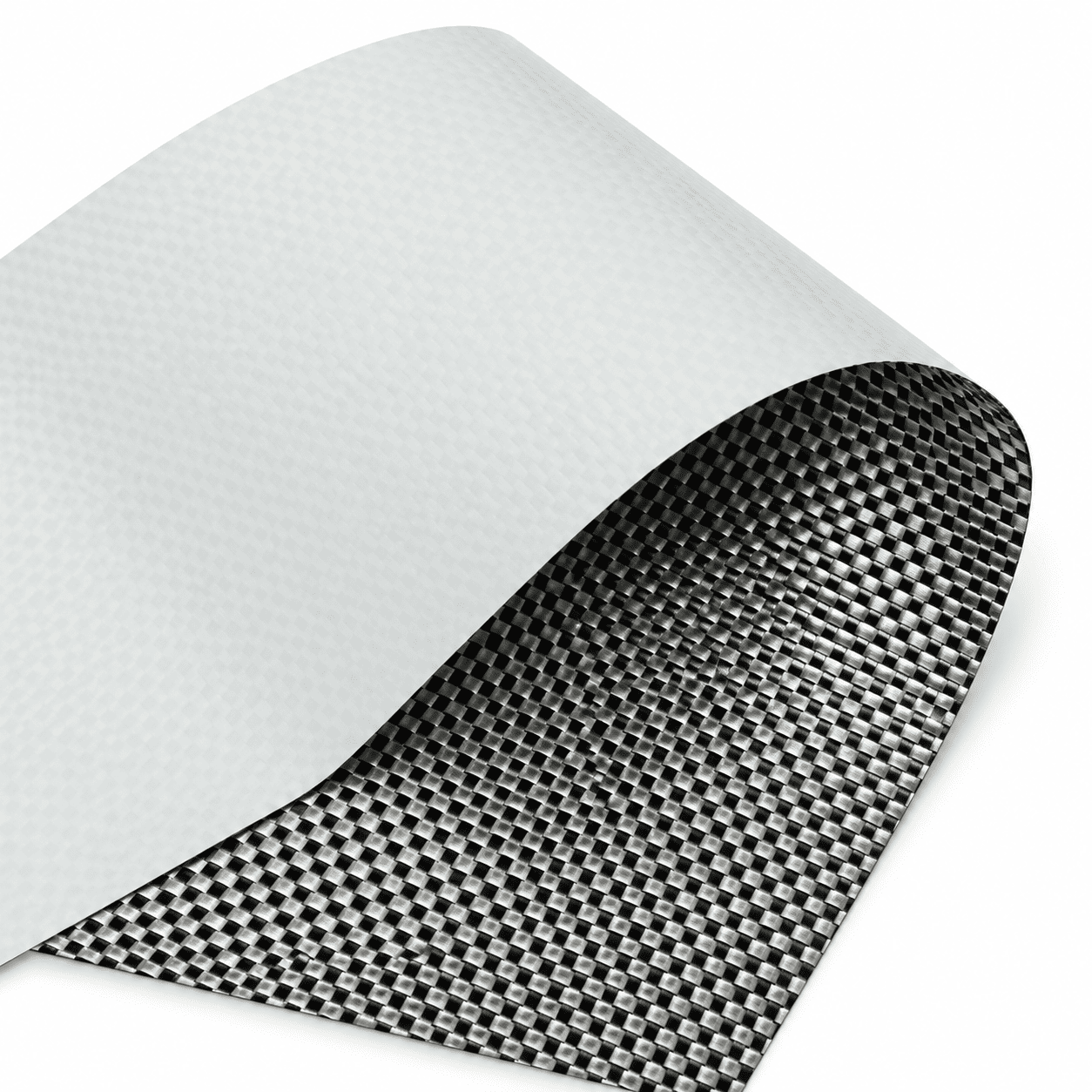

Base Fabric	Carbon Fabric	Carbon Aramid Hybrid Fabric	Carbon Glass Hybrid Fabric
Weave Pattern	Plain / 2×2 Twill / Jacquard	Plain / 2×2 Twill / Jacquard	Plain / 2×2 Twill / Jacquard
Base Fabric Weight	200 g/m²	300 g/m²	400 g/m²
Lamination Film	PVC, TPU, PVF,PVDF	PVC, TPU, PVF,PVDF	PVC, TPU, PVF,PVDF
Reference Coating Weight	20–100 g/m²	20–100 g/m²	20–100 g/m²
Calculated Finished Weight	220–300 g/m²	320–400 g/m²	420–500 g/m²
Target Finished Thickness	0.5–0.7 mm	0.7–0.9 mm	0.9–1.1 mm
Standard Width	1000 mm	1000 mm	1000 mm
Film Color	Black / White / Custom	Black&Red / Balck&Yellow / Black&Blue / Custom	Black / White / Custom
Surface Finish	Smooth / Textured	Smooth / Textured	Smooth / Textured
Reference Roll Length	50 m	50 m	50 m

Looking for a different fabric or lamination film? Explore our carbon fiber, aramid, and film-laminated fabric options. If you're not sure which material is right for your project, send us your requirements and we'll help you choose the right fabric and film combination.

PVC Laminated Carbon Aramid Fabric Related Products

Carbon Fiber Fabric

Learn More

Carbon Fiber Prepreg Fabric

Learn More

Para Aramid Fabric

Learn More

Para Aramid Prepreg Fabric

Learn More

SHENGHE can review your drawings, samples, or technical requirements and help you choose the right base fabric and lamination film, including PVC, TPU, PVF, and PVDF, for your application.

We offer custom film-laminated fabrics

We can customize the following specifications: Base fabric type: Carbon Fiber, Carbon-Aramid Hybrid, or Carbon-Glass HybridLamination film: PVC, TPU, PVF, or PVDFFilm color and thicknessFinished fabric thickness and weightSurface finish: Smooth, Textured, or CustomFinished fabric widthRoll length and packaging requirementsReference samples and other technical specifications

For custom orders, let us know what you're making and any specific requirements you have. We'll help you choose the right base fabric and lamination film for your application.

If you already have a material sample, technical drawing or target specification, send it along with your expected quantity.

Get a quote

Applications of Film-Laminated Carbon Fiber & Hybrid Fabrics

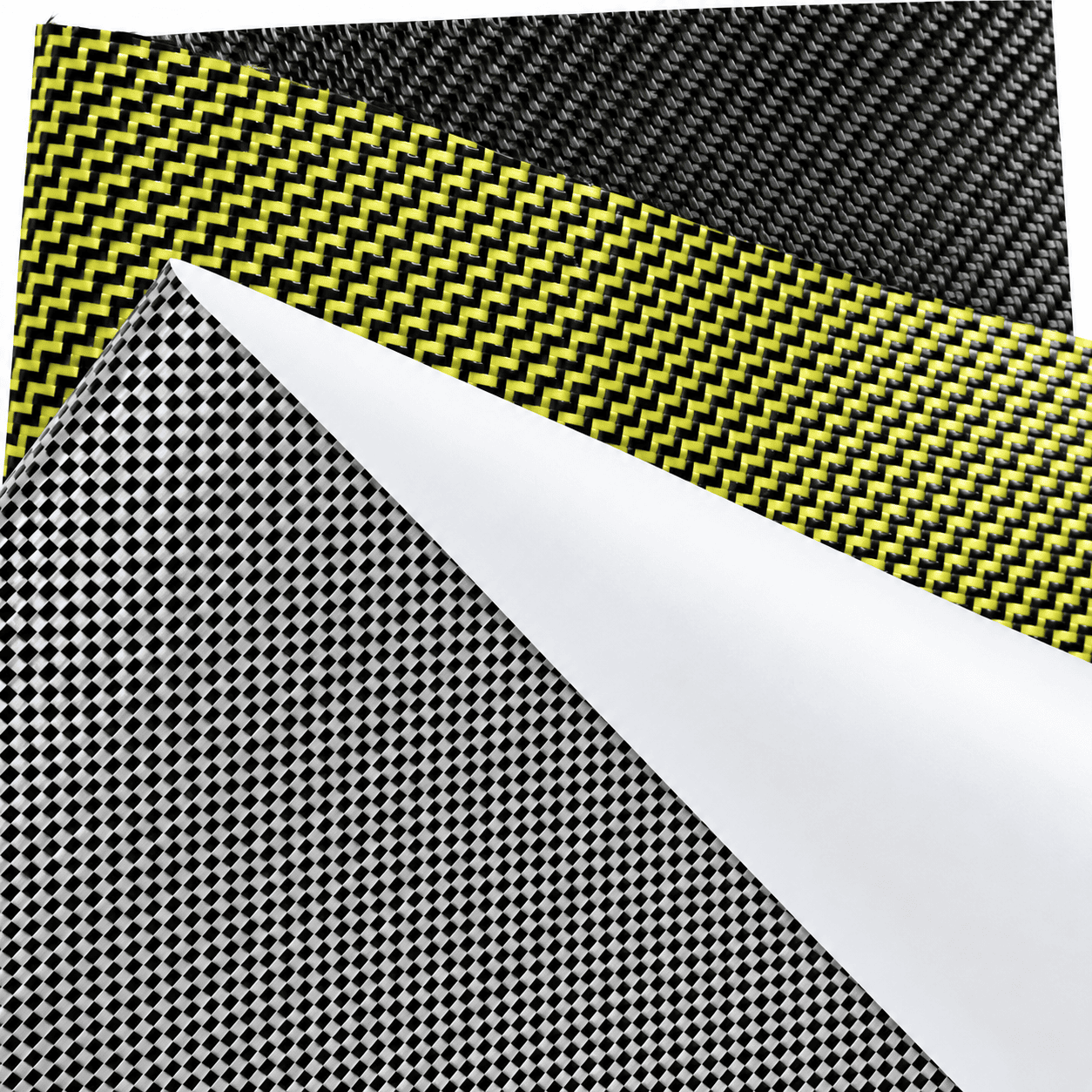

SHENGHE film-laminated fabrics are available with carbon fiber, carbon-aramid hybrid, and carbon-glass hybrid base fabrics. These fabrics can be laminated with PVC, TPU, PVF, or PVDF films for use in protective covers, bags, cases, decorative panels, and other textile products.

Protective Covers and Equipment Wraps

The PVC surface provides a covering over the woven textile, while the flexible fabric construction allows it to follow the shape of the item being covered.

Bags, Cases and Protective Accessories

The carbon-aramid woven pattern can give bags and protective accessories a distinctive appearance, particularly where some of the weave remains visible through the coating.

Decorative and Interior Panels

The contrast between carbon fiber and aramid yarns makes the woven material suitable for evaluating decorative surface applications.

Industrial Flexible Components

Film-laminated carbon fiber and hybrid fabrics can also be used for custom textile parts that need a woven base fabric with a protective film surface.

FAQ – Film-Laminated Carbon Fiber & Hybrid Fabrics

What is the difference between regular carbon fiber fabric and film-laminated fabric?

Regular carbon fiber and hybrid fabrics are woven materials without an added film layer. Film-laminated fabrics have a PVC, TPU, PVF, or PVDF film bonded to the surface, changing the fabric's appearance, weight, thickness, and flexibility.

What base fabrics are available for film lamination?

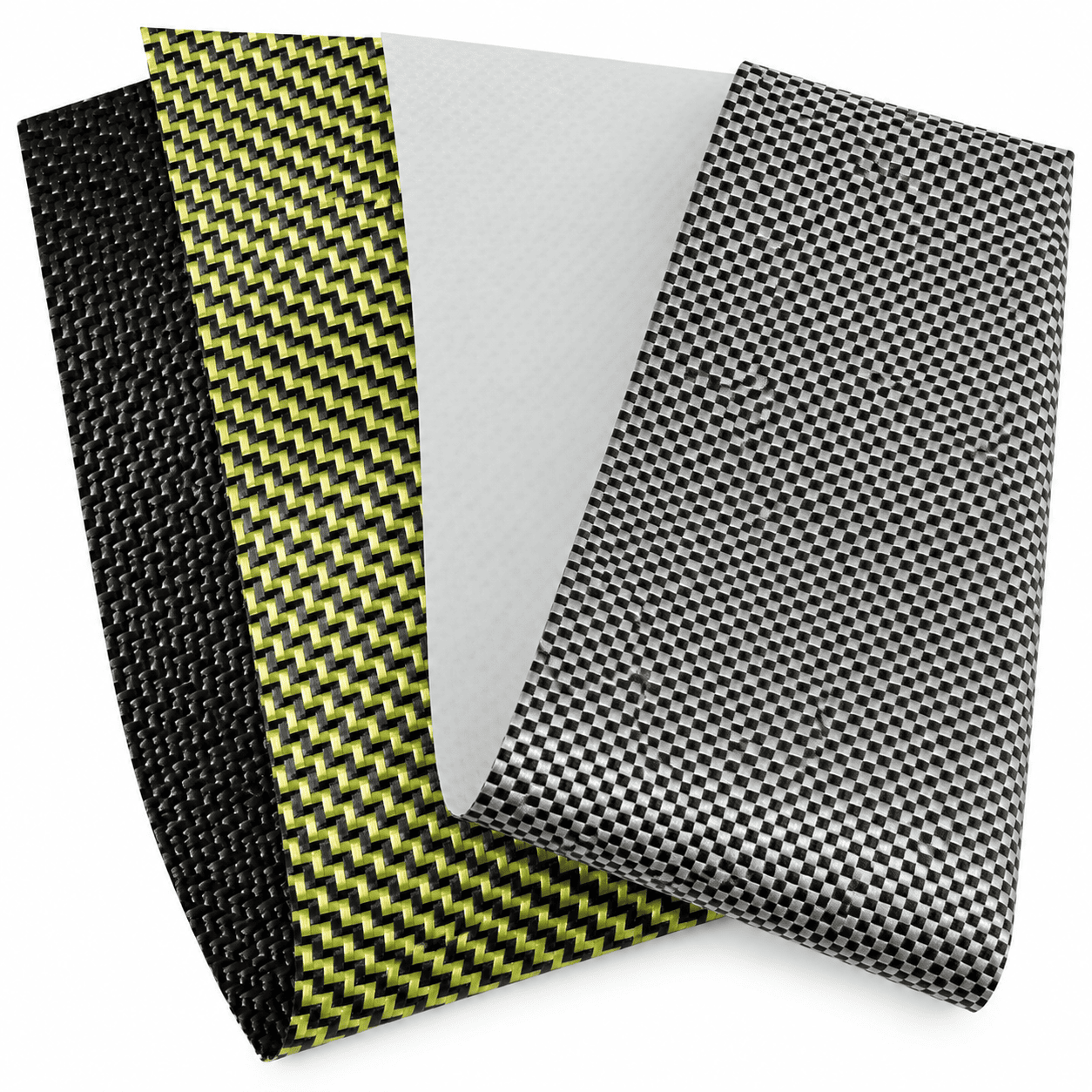

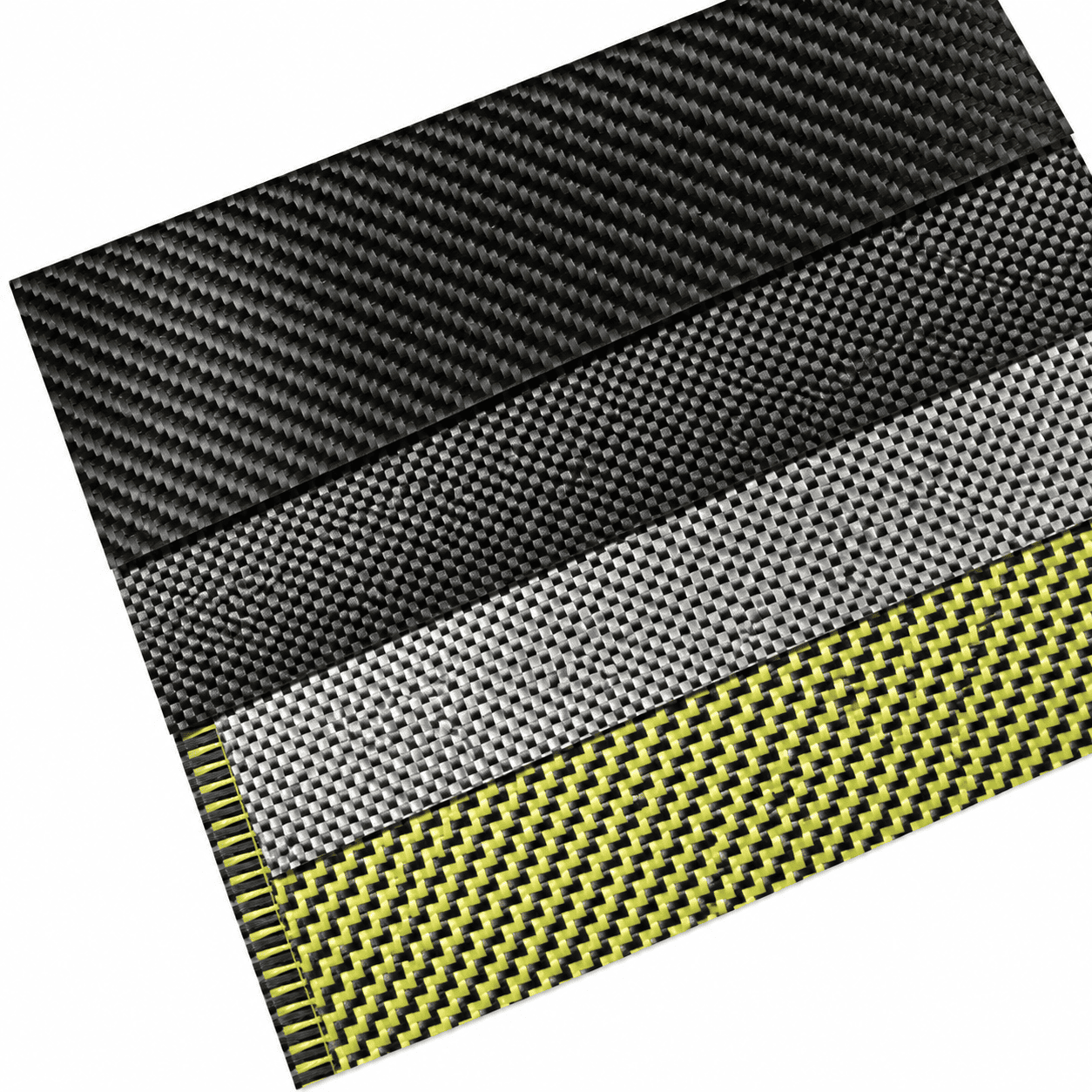

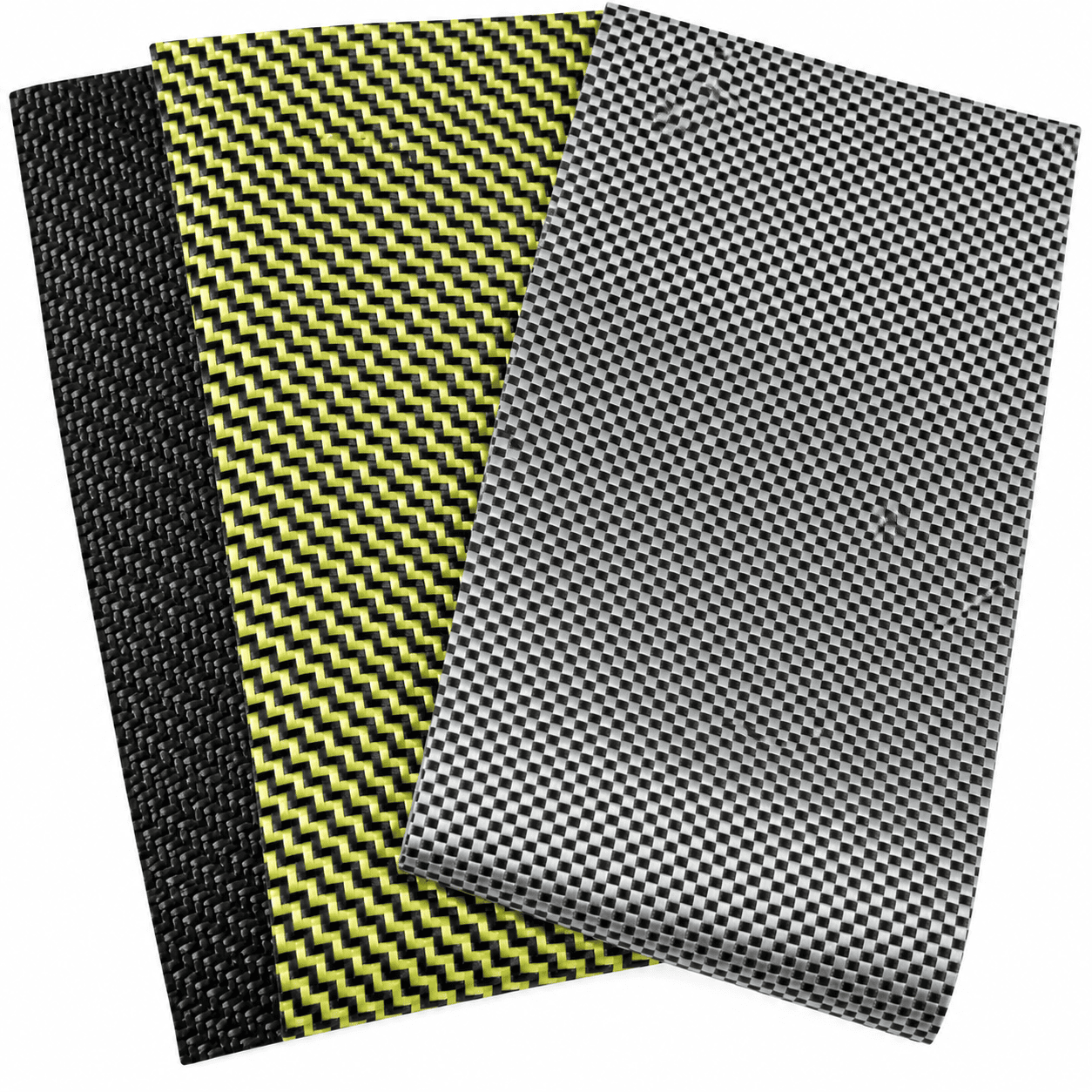

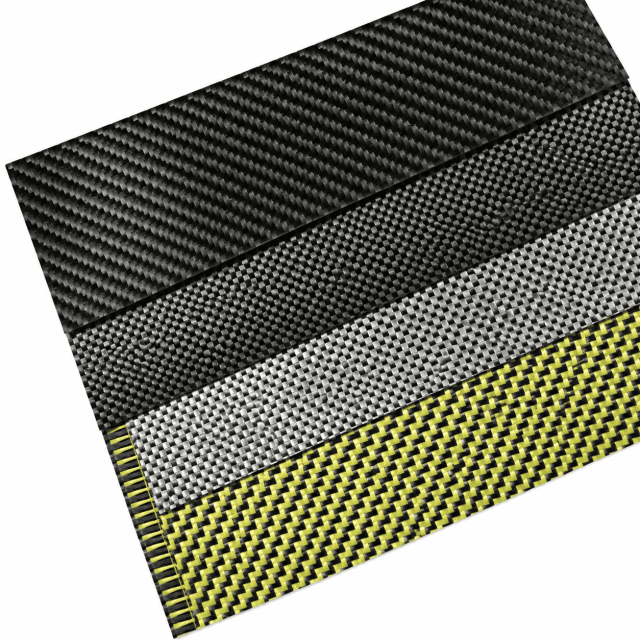

We offer three options: 100% carbon fiber fabric, carbon-aramid hybrid fabric, and carbon-glass hybrid fabric. Let us know which material you need, and we'll help you choose the right specification.

Can I choose different film materials and colors?

Yes. We offer PVC, TPU, PVF, and PVDF film options. Black and white are common colors, and other colors can be discussed based on your requirements.

Can I customize the film thickness and finished fabric weight?

Yes. Tell us your required film thickness, finished fabric weight, or overall thickness. You can also send us a reference sample, and we'll check what we can produce.

Are film-laminated carbon fiber and hybrid fabrics waterproof?

The laminated film can provide a water-resistant surface, but waterproof performance depends on the film material, lamination quality, and finished construction. If you need a specific waterproof rating, please share your testing requirements.

Can film-laminated fabrics be cut or sewn?

Yes, these fabrics can be cut and sewn, but the results depend on the base fabric, film type, and thickness. We recommend testing a sample with your cutting or sewing equipment before production.

Can I request samples before placing a bulk order?

Yes. Tell us which base fabric, film material, color, and thickness you need, along with your intended application. We'll check the available samples and specifications for you.
