Home > All Collections > Carbon fiber series > Carbon Fiber Fiberglass TPU Laminated Fabric

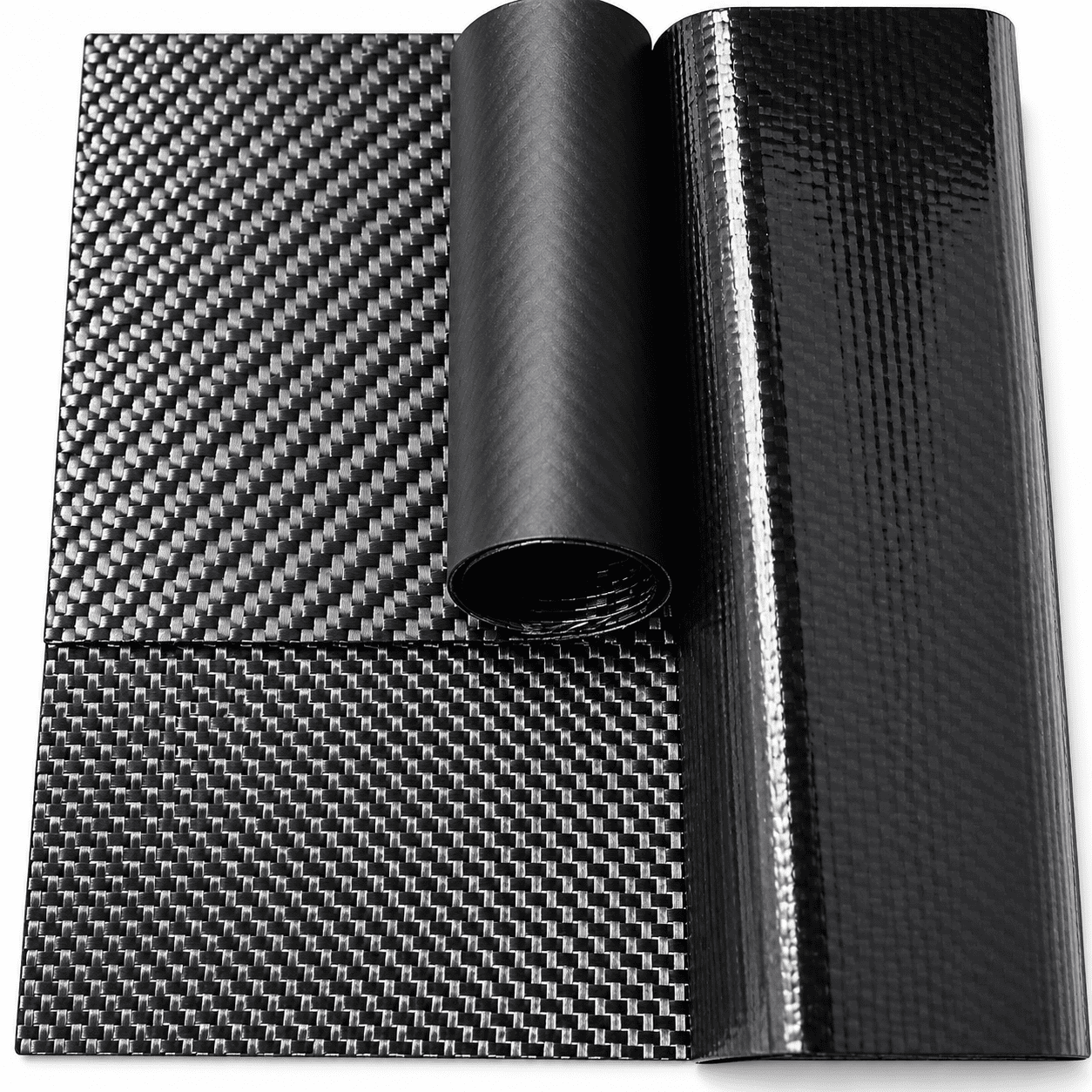

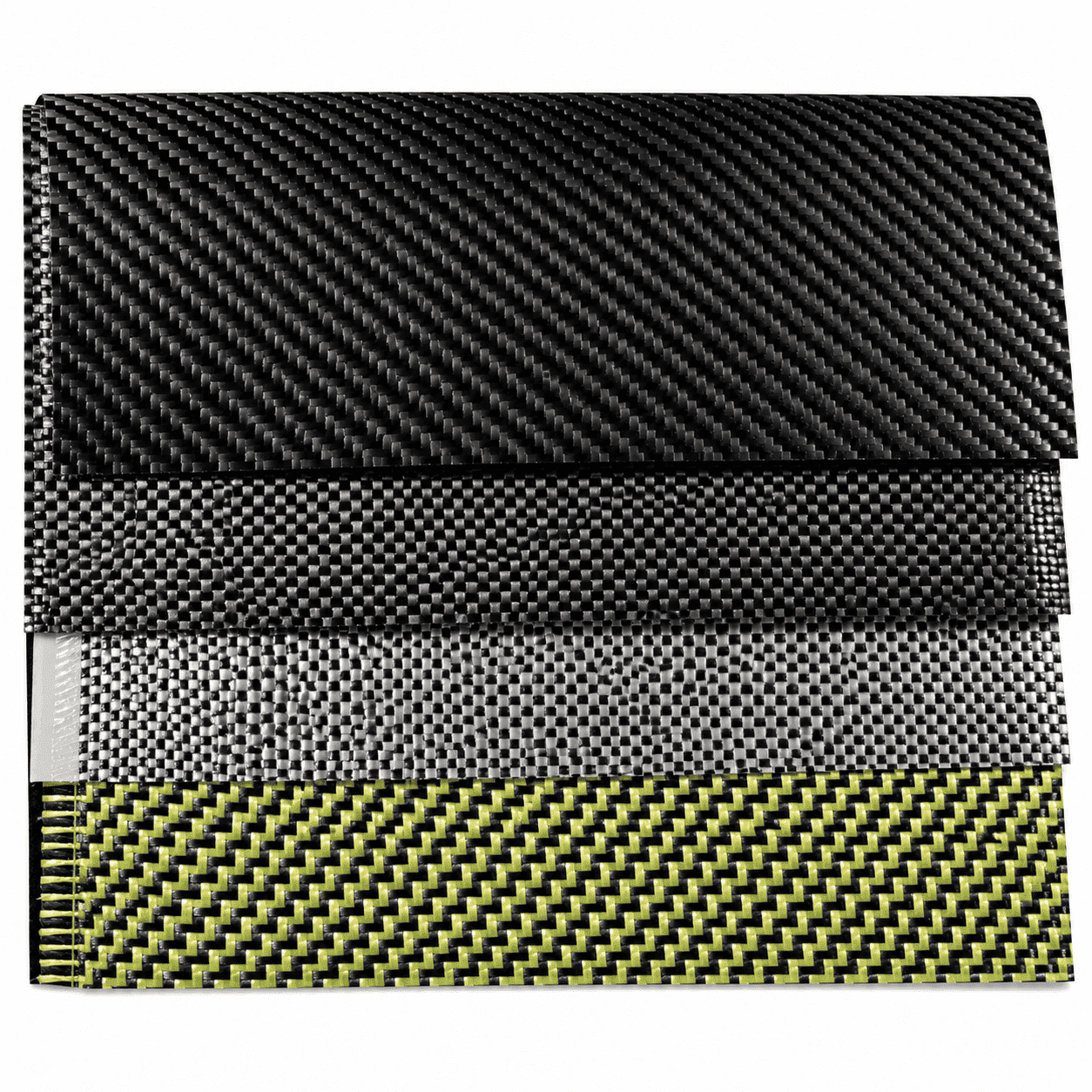

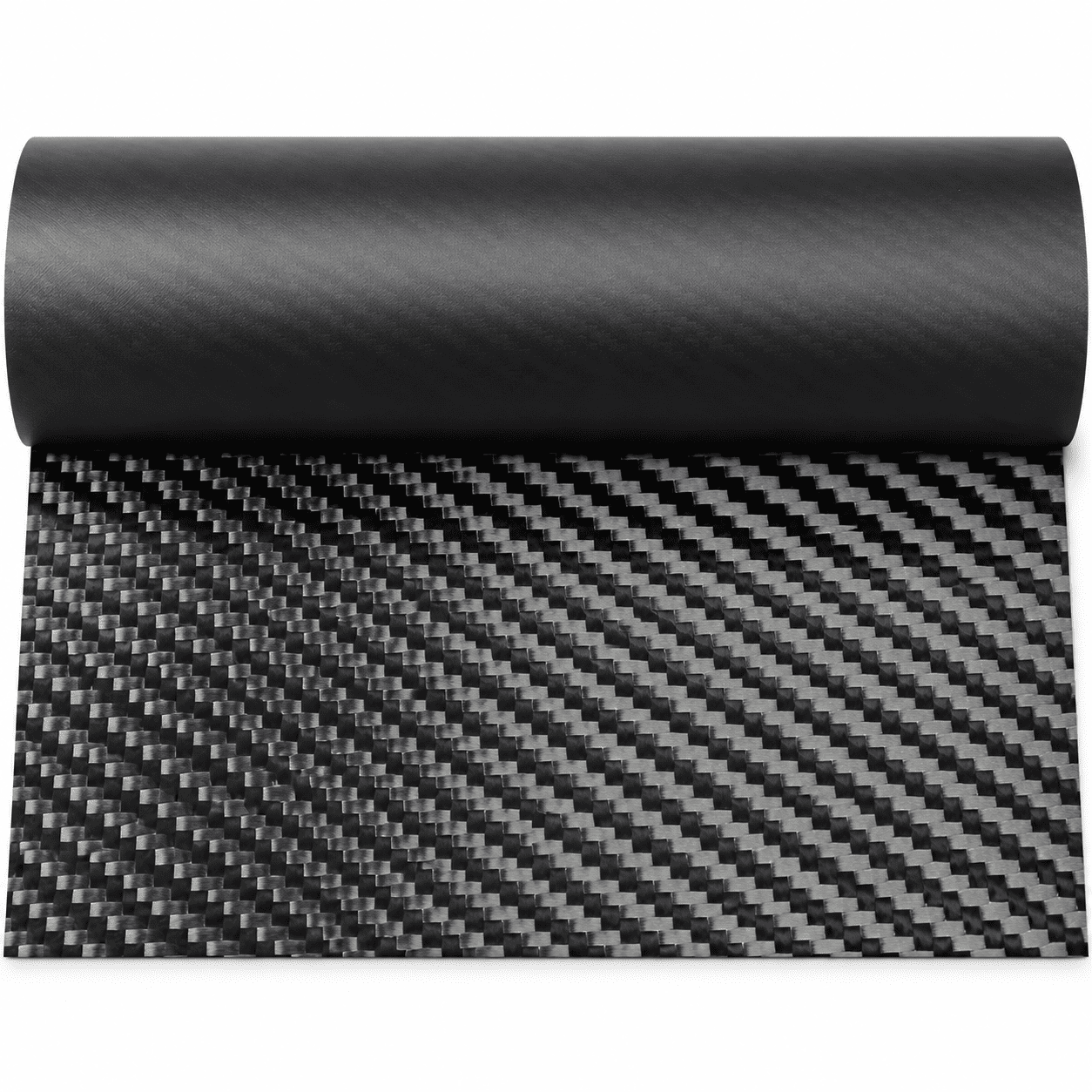

Carbon Fiber TPU Laminated Fabric | Carbon Fiber Fiberglass TPU Laminated Fabric | Carbon Aramid Hybird TPU Laminated Fabric

No.SHCF-021

Carbon fiber and fiberglass fabric laminated with TPU film. Explore fabric construction, specifications, applications and available film options.

Material

Carbon Fiber + Aramid Fiber +Glass fiber

Base Fabric

Carbon Fabric / Carbon Aramid Hybrid Fabric / Carbon Glass Hybrid Fabric ( It also can be other films such as TPU, PVF, and PVDF)

Base Fabric Weight

200 g/m² （customizable)

Film

TPU

Colors

Black / White / Custom

Surface

Multiple Finishes

Thickness

Customizable

Width

1000 mm (Customizable)

Packaging

Roll+cardboard box / Customized Packaging

GET A QUOTE

TPU Laminated Carbon Fiber Fiberglass Fabric Features

High Strength & Tear Resistance

Abrasion-Resistant TPU Surface

Flexible Laminate Construction

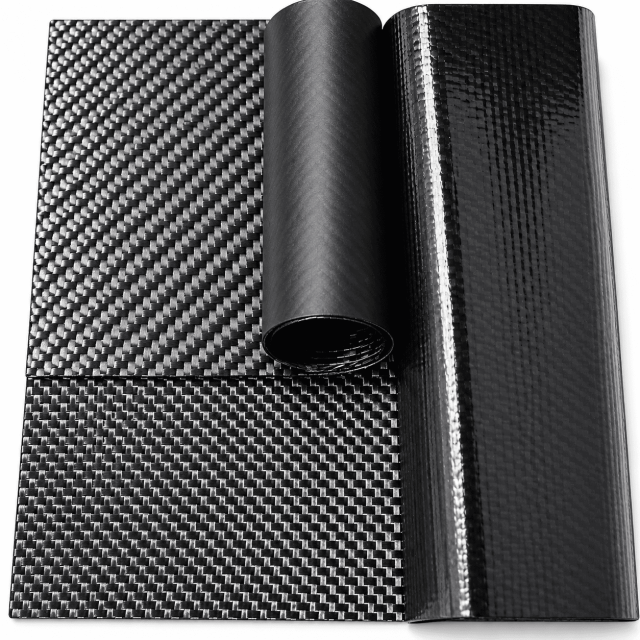

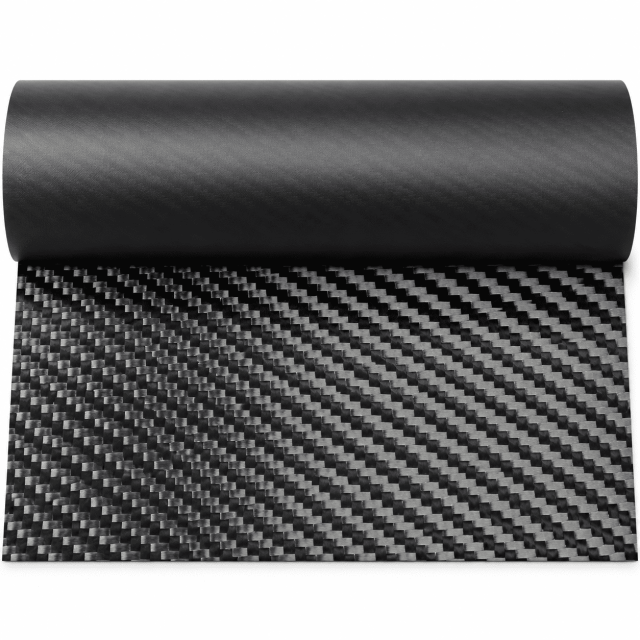

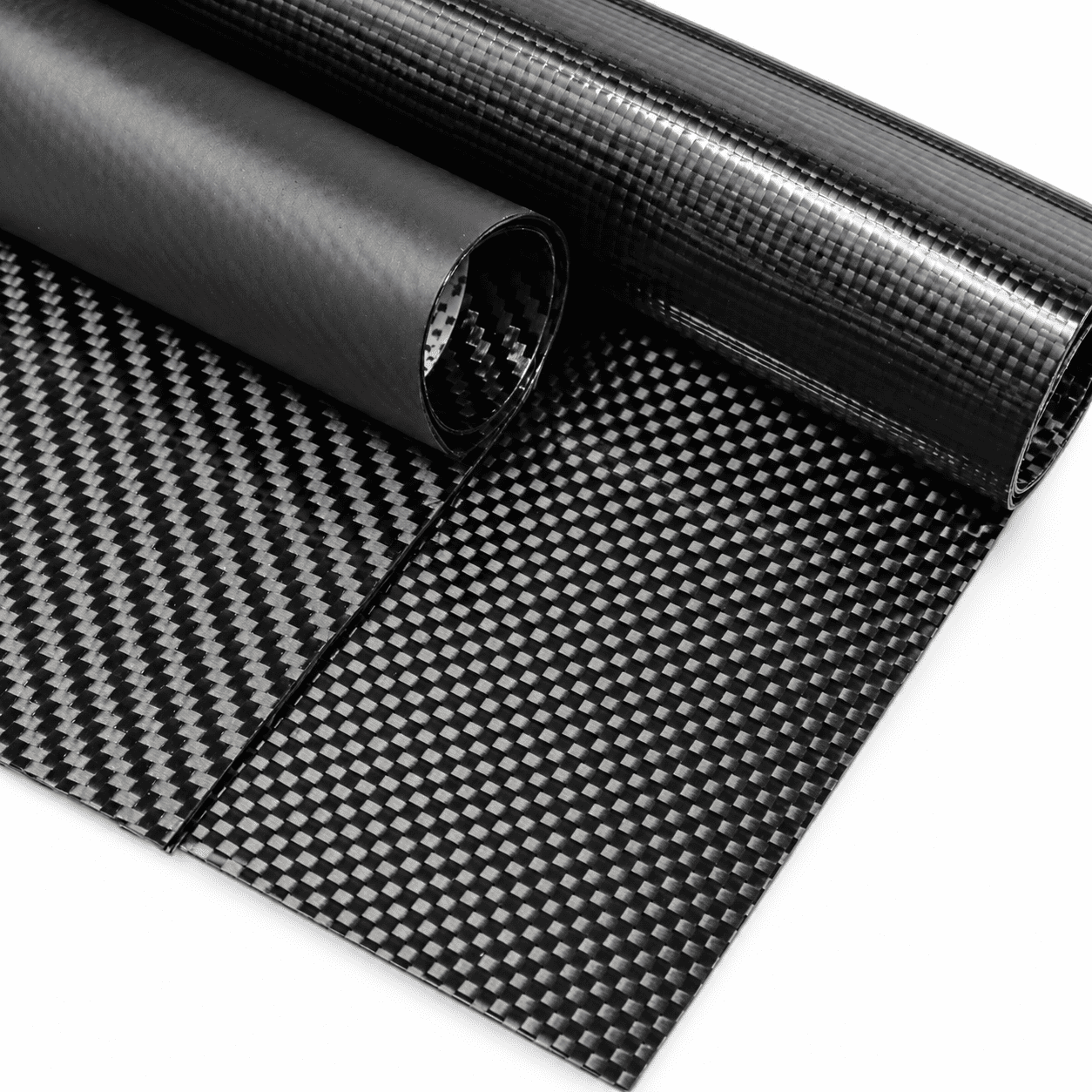

Carbon Fiber Fiberglass TPU Laminated Fabric

SHENGHE Carbon Fiber Fiberglass TPU Laminated Fabric is made by combining separate layers of carbon fiber and fiberglass hybrid fabric with TPU film.

Carbon Fiber Fabric Layer adds strength and stiffness while keeping weight low.Fiberglass Fabric Layer Provides additional reinforcement.TPU Film Layer Forms the outer surface of the laminate. Film thickness can be selected based on the required flexibility, surface feel and application.

Our TPU laminated carbon fiber fabric can be supplied according to your required construction. TPU is our main film option. PVC, PVF, PVDF and PTFE films are also available for projects requiring different surface properties.

Get a quote

TPU Laminated Carbon Fiber Fabric – Technical Specifications

Items	Carbon Fiber TPU Laminated Fabric	Carbon Aramid TPU Laminated Fabric	Carbon Fiberglass TPU Laminated Fabric
Base Fabric	Carbon Fiber Fabric	Carbon Aramid Hybrid Fabric	Carbon Fiber Fabric + Fiberglass Fabric
Fabric Construction	Woven Carbon Fiber	Carbon/Aramid Hybrid Woven	Separate Carbon and Fiberglass Layers
Weave Pattern	Plain / 2×2 Twill / Jacquard*	Plain / 2×2 Twill / Jacquard*	Depending on Each Fabric Layer
Reference Base Fabric Weight	200 g/m²*	300 g/m²*	400 g/m² Total*
Main Lamination Film	TPU	TPU	TPU
Available Film Options	PVC / TPU / PVF / PVDF / PTFE / PU / PET	PVC / TPU / PVF / PVDF / PTFE / PU / PET	PVC / TPU / PVF / PVDF / PTFE / PU / PET
Film Configuration	Single / Double-Sided*	Single / Double-Sided*	Single / Double-Sided*
Reference Film Areal Weight	20–100 g/m² per Layer*	20–100 g/m² per Layer*	20–100 g/m² per Layer*
Finished Fabric Weight	Depending on Film and Bonding Layers	Depending on Film and Bonding Layers	Depending on Total Layer Construction
Finished Thickness	To Be Confirmed	To Be Confirmed	To Be Confirmed
Reference Width	1000 mm*	1000 mm*	1000 mm*
Fabric Color	Black / Custom*	Black & Yellow / Black & Red / Custom*	Depending on Fabric Layers
Film Color	Transparent / Black / Custom*	Transparent / Black / Custom*	Transparent / Black / Custom*
Surface Finish	Smooth / Textured*	Smooth / Textured*	Smooth / Textured*
Reference Roll Length	50 m*	50 m*	50 m*
Customization	Fabric / Film / Width	Fabric / Film / Width	Fabric Layers / Film / Width

Looking for a different fabric or lamination film? Explore our carbon fiber, aramid, and film-laminated fabric options. If you're not sure which material is right for your project, send us your requirements and we'll help you choose the right fabric and film combination.

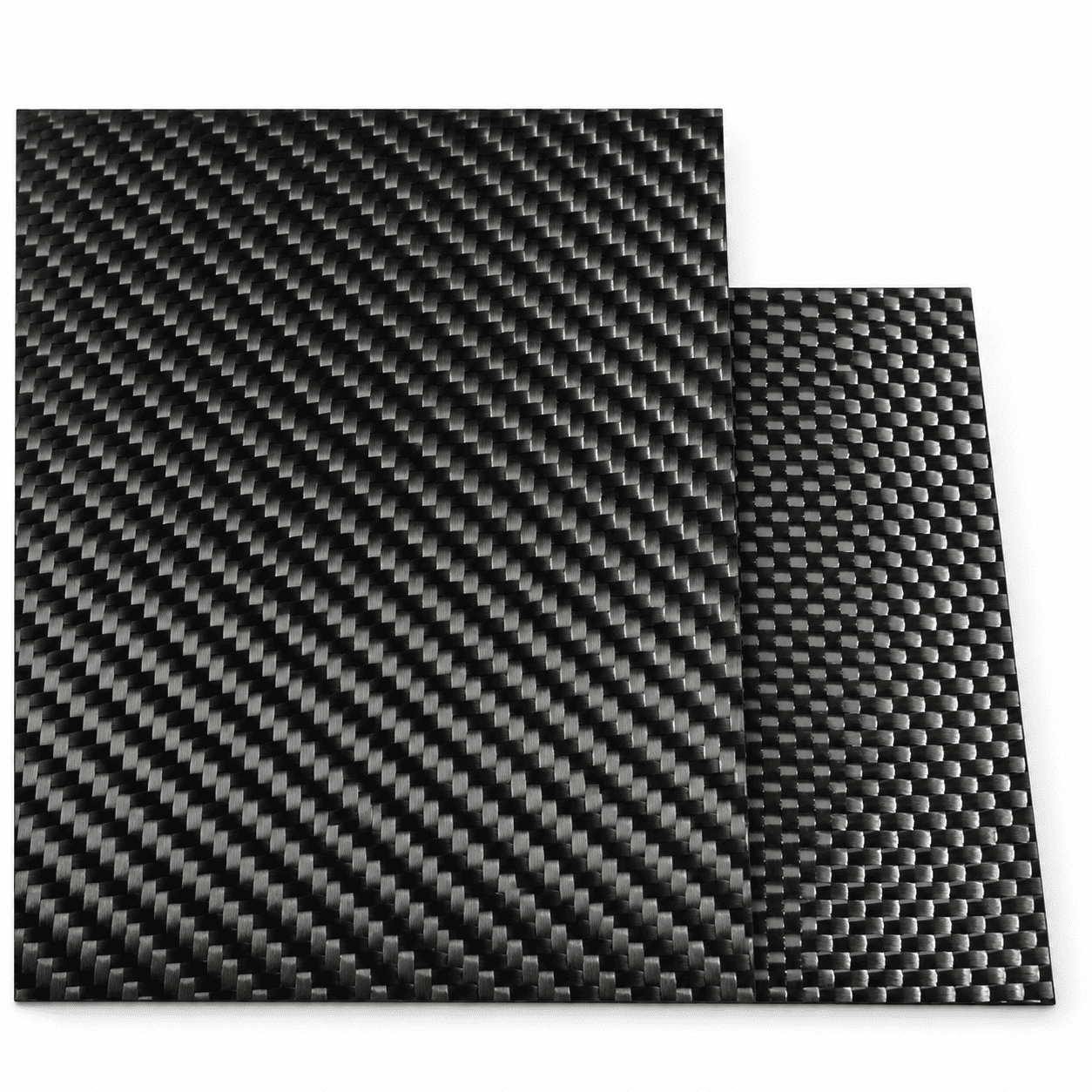

Carbon Fiber Fiberglass TPU Laminated Fabric

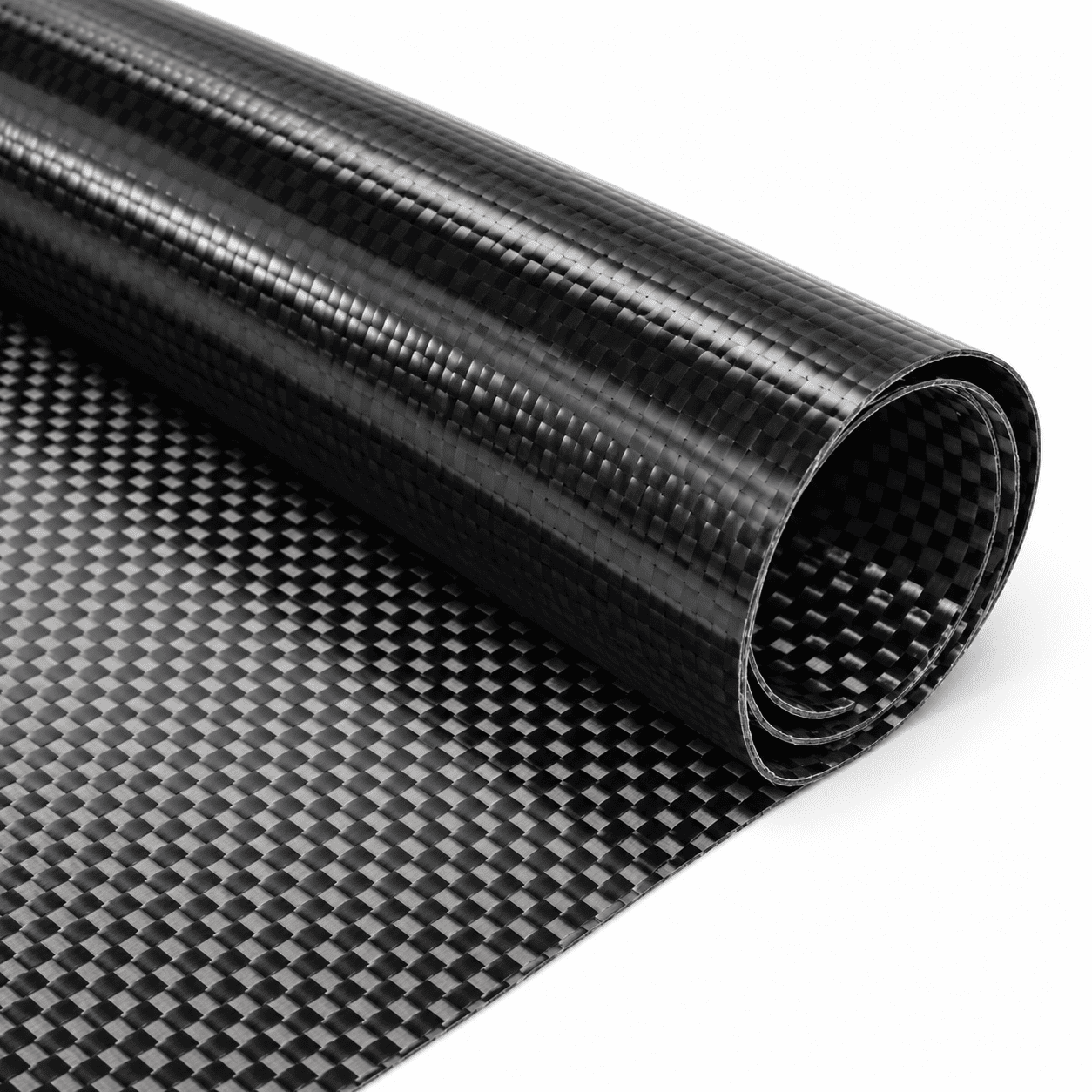

PVC Laminated Carbon Fiberglass Fabric

Learn More

Carbon Fiber Fabric

Learn More

Para Aramid Fabric

Learn More

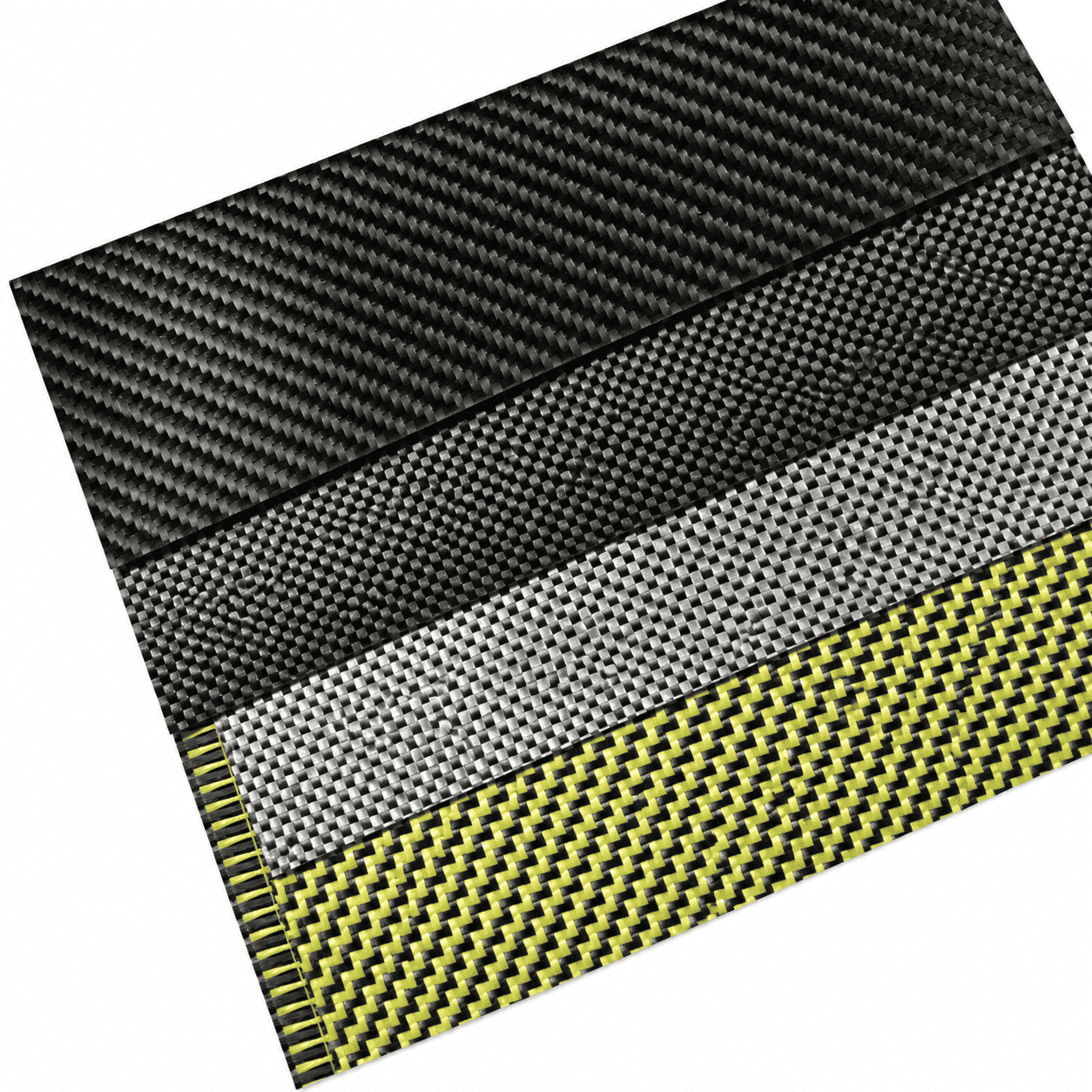

Carbon kevlar Hybrid Fabric

Learn More

Applications of Carbon Fiber Fiberglass TPU Laminated Fabric

Tell us whether the part will be cut, folded, stitched, bonded or formed over a surface. We can then review the fabric layers, film choice and thickness before preparing a sample.

Protective Covers and Industrial Wraps

TPU laminated fabric can be considered for protective covers and wraps where the customer wants a film surface over a woven reinforcement. The TPU facing separates the fabric from direct surface contact.

Bags, Cases and Protective Accessories

TPU laminated carbon fiber fabric can be used in the development of cases, bags and protective accessories that require a carbon fiber textile appearance with an added film surface.The finished material needs to work with the customer s cutting, folding, stitching or bonding process.

Decorative and Interior Panels

Laminated carbon fiber materials may be considered for automotive trim, decorative panels and non-structural interior components. For these applications, customers usually need to check surface appearance, dimensional stability, attachment to backing materials and resistance to the temperatures encountered in the finished part.

Equipment Panels and Surface-Facing Materials

A carbon fiber composite fabric with a TPU facing may be evaluated for panels, protective skins and equipment surfaces where an exposed woven cloth is not desired. The TPU film covers the fabric surface, while the laminate retains its layered textile construction.

SHENGHE can review your drawings, samples, or technical requirements and help you choose the right base fabric and lamination film, including PVC, TPU, PVF, and PVDF, for your application.

We offer custom film-laminated fabrics

We can customize the following specifications: Base fabric type: Carbon Fiber, Carbon-Aramid Hybrid, or Carbon-Glass HybridLamination film: PVC, TPU, PVF, or PVDFFilm color and thicknessFinished fabric thickness and weightSurface finish: Smooth, Textured, or CustomFinished fabric widthRoll length and packaging requirementsReference samples and other technical specifications

For custom orders, let us know what you're making and any specific requirements you have. We'll help you choose the right base fabric and lamination film for your application.

If you already have a material sample, technical drawing or target specification, send it along with your expected quantity.

Get a quote

How to Choose the Right TPU Laminated Fabric

1. What Will the Material Be Used For?

Tell us whether the part needs to bend, hold its shape, resist surface wear or bond to another material. This helps narrow down the fabric and film construction.

2. What Finished Weight and Thickness Do You Need?

The weight of TPU laminated carbon fiber fabric includes the fabric layers, film and bonding materials. For bonding or forming operations, share the process temperature, pressure and any adhesive system being used. This helps determine whether a proposed material is worth sampling.

3. Is TPU the Right Film?

TPU is the main film option, but it is not the right choice for every operating environment. If your product will be exposed to chemicals, outdoor weathering or temperatures outside the intended TPU grade s range, tell us before ordering. We can review other available film options.

FAQ-Carbon Fiber Fiberglass TPU Laminated Fabric

What is the difference between TPU coated fabric and TPU laminated fabric?

TPU coated fabric has a TPU coating applied to a substrate, while TPU laminated fabric uses a pre-formed TPU film bonded to the fabric. The finished properties depend on the materials and processing method.

Can I choose PVC, PVF, PVDF or PTFE instead of TPU?

Yes. These materials are listed under our Available Film Options. We need to review the requested film, fabric construction and intended use before confirming the final specification.

Is TPU laminated carbon fiber fabric waterproof?

TPU film can provide a water-resistant barrier, but the waterproof performance of the complete laminate depends on film continuity, bonding, edges, seams and testing conditions. If you need a particular waterproof rating, please provide the test standard.

Can the material be made with different carbon fiber and fiberglass specifications?

Different fabric constructions can be reviewed according to your requirements. Send us the carbon fiber and fiberglass specifications, or a sample of the material you currently use.

Can TPU film be applied to both sides?

Double-sided film lamination can be reviewed. Whether a particular construction is available depends on the film, bonding method and production requirements.

Can I order a sample before placing a bulk order?

Please send the required thickness, width, application and any specific test requirements. We can review the sample options with you before confirming a production order.
